High Voltage Cables
High Voltage Cables and Solutions
- Mwanga Afrika Cables is the third local manufacturer and supplier of the South African certified XLPE High Voltage Cable (Copper and Aluminium Cable 44 - 132kV).
- In partnership with our international partners, Mwanga Afrika Cables introduces new alternative designs to improve its portfolio.
- The High Voltage Plant provides the following solutions and services:
- Commission, Test and Maintain High Voltage Cables.
- Install High Voltage Cable and provide related engineering services
- Supply and install High Voltage accessories.
- Provide technical and engineering support and solutions to customers.
Cooper Data Sheet
| Conductor Size | Conductor Diameter | Insulation Diameter | Core Screen Diameter | CSA Diameter | Cable Diameter | Cable Mass |
|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | mm | kg/km |
| 300 | 20.8 | 60.8 | 62.8 | 85.9 | 105.9 | 11652 |
| 400 | 23.8 | 63.8 | 65.8 | 89.0 | 109.0 | 12891 |
| 500 | 26.4 | 66.4 | 68.4 | 91.7 | 111.7 | 14146 |
| 630 | 30.3 | 70.3 | 72.3 | 95.8 | 115.8 | 16028 |
| 800 | 34.7 | 74.7 | 76.7 | 100.3 | 120.3 | 18550 |
| 1000 | 38.5 | 78.5 | 80.5 | 104.2 | 124.2 | 20421 |
Aluminium Data Sheet
| Conductor Size | Conductor Diameter | Insulation Diameter | Core Screen Diameter | CSA Diameter | Cable Diameter | Cable Mass |
|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | mm | kg/km |
| 300 | 21.5 | 61.5 | 63.5 | 86.6 | 106.6 | 9905 |
| 400 | 24.3 | 64.3 | 66.3 | 89.6 | 109.6 | 10568 |
| 500 | 26.6 | 66.6 | 68.6 | 91.9 | 111.6 | 11162 |
| 630 | 31.5 | 71.5 | 73.5 | 97.0 | 117.0 | 12298 |
| 800 | 34.7 | 74.7 | 76.7 | 100.3 | 120.3 | 13251 |
| 1000 | 38.8 | 78.8 | 80.8 | 104.5 | 124.5 | 14327 |

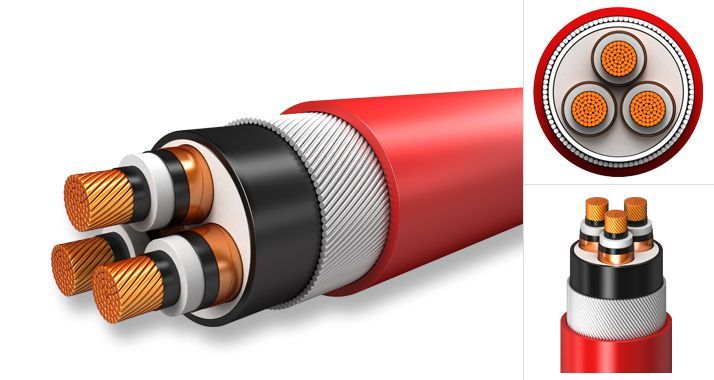

Product Image
XLPE 132kV High Voltage Cable
